Sheltered space directly at the vehicle side or rear
The VICKYWOOD Rear/Side Awning extends your vehicle with a covered outdoor area and a 200 cm projection. It provides shade and protection from rain directly at the vehicle, creating space for cooking, sitting or a sheltered entrance.
Four widths and model-specific mounting positions
The awning is available in black, grey and earthy-yellow. Width, weight, closed dimensions and mounting position vary by version:
-

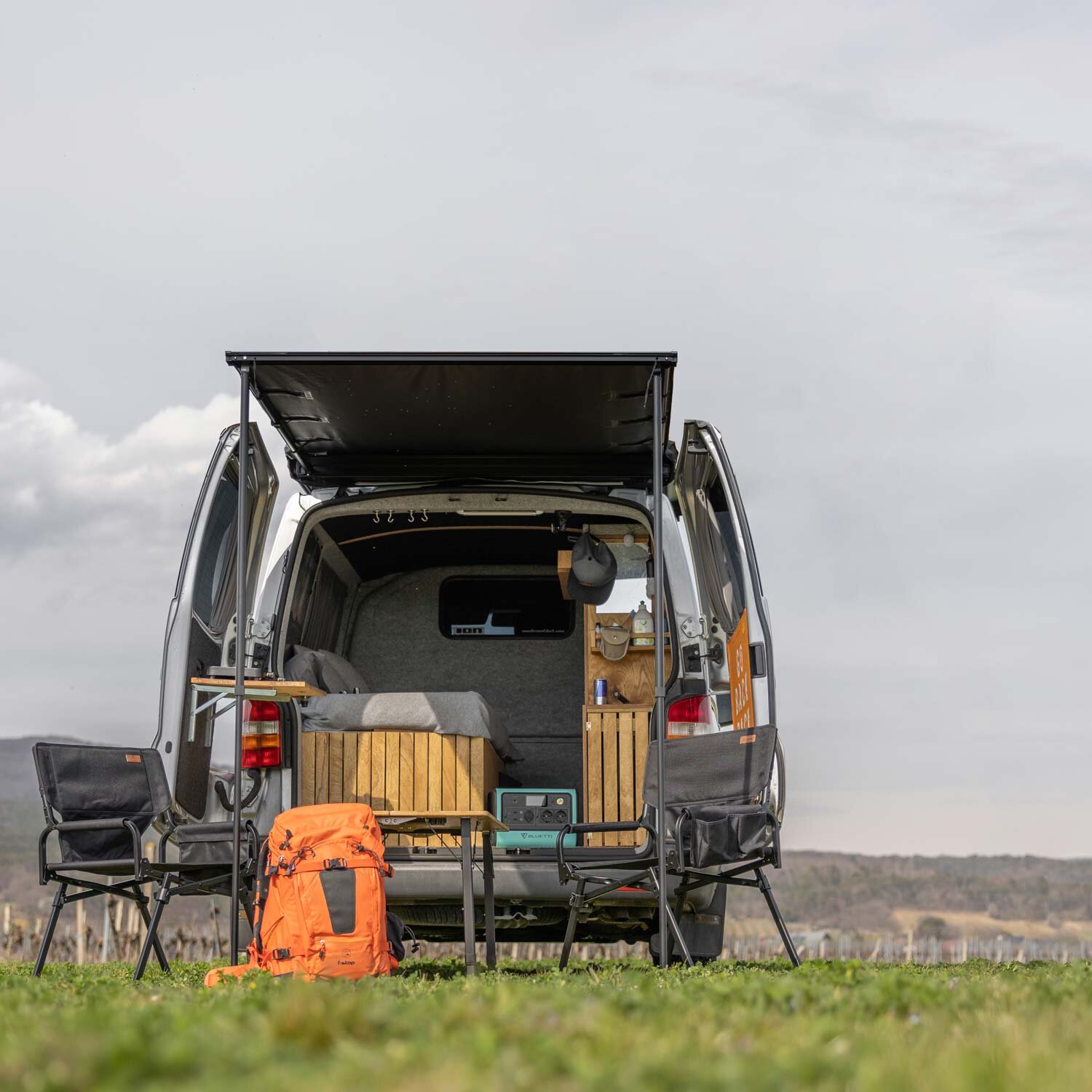

140 cm: set-up dimensions 140 × 200 cm, approximately 7.2 kg, closed dimensions 147 × 10 × 13 cm, installation on the left, right or at the rear
-
160 cm: set-up dimensions 160 × 200 cm, approximately 9.2 kg, closed dimensions 167 × 10 × 13 cm, installation on the left, right or at the rear
-
200 cm: set-up dimensions 200 × 200 cm, approximately 13 kg, closed dimensions 207 × 10 × 15 cm, installation on the left or right
-
250 cm: set-up dimensions 250 × 200 cm, approximately 16 kg, closed dimensions 257 × 10 × 13 cm, installation on the left or right
This allows the suitable combination of width, colour and mounting position to be selected for the vehicle setup.
Roof-rack mounting and adjustable setup height

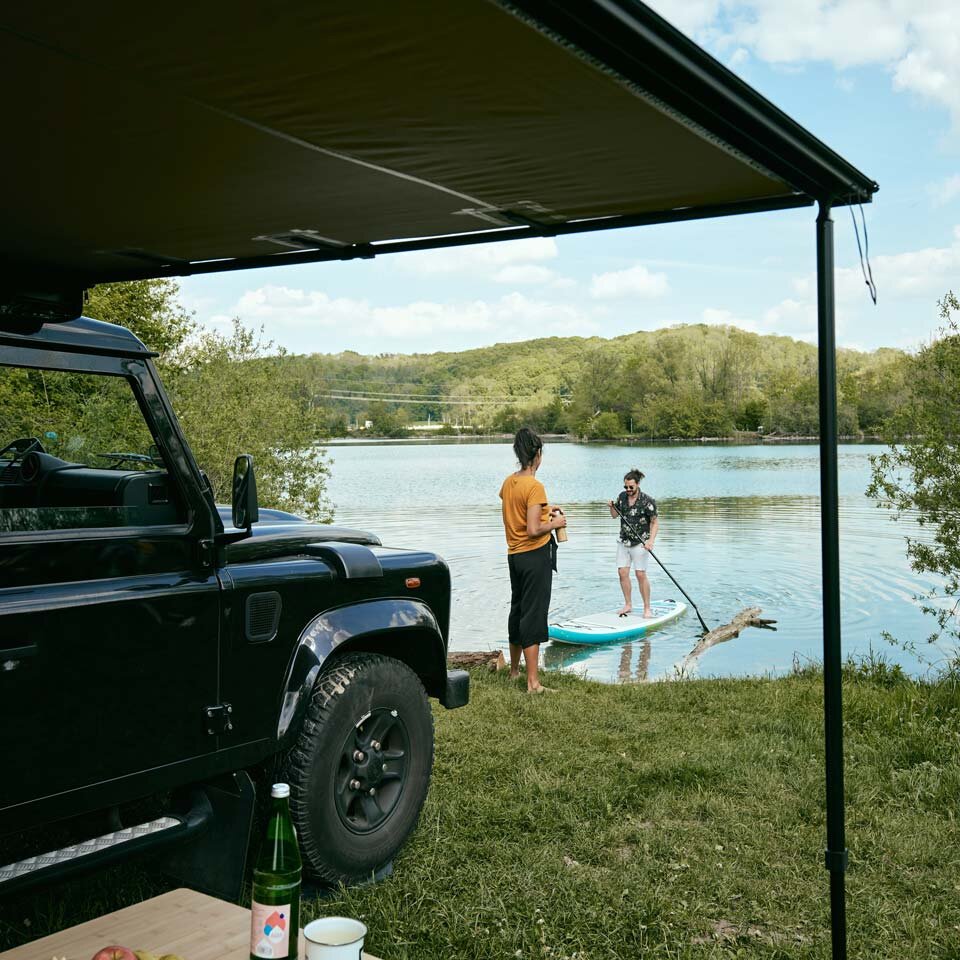

The awning is fitted to a suitable roof rack using a rail system and L brackets. Height-adjustable aluminium telescopic poles with a diameter of 22/25 mm support the canopy up to a height of approximately 210 cm. Guy lines and pegs support a stable setup in changing conditions.
Ripstop polyester with a PU coating

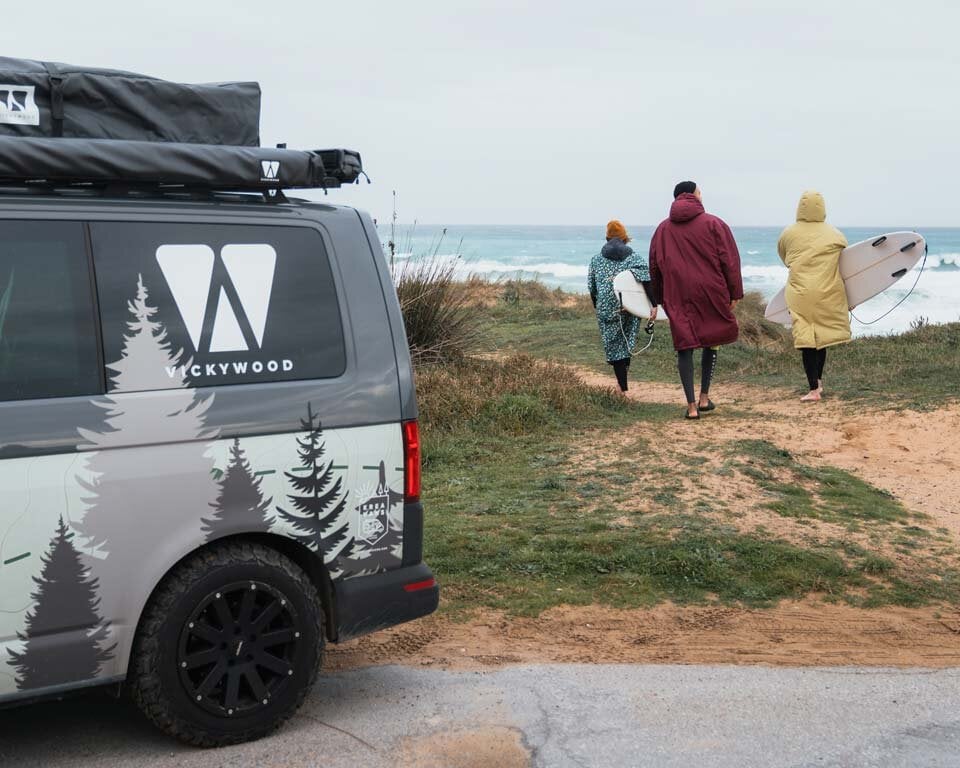

The 320 g/m² ripstop polyester fabric has a PU coating, a 3,000 mm water column and UV 50+ protection. During travel, the black cover made from 1,000 g PVC protects the awning and keeps it stored compactly on the vehicle.

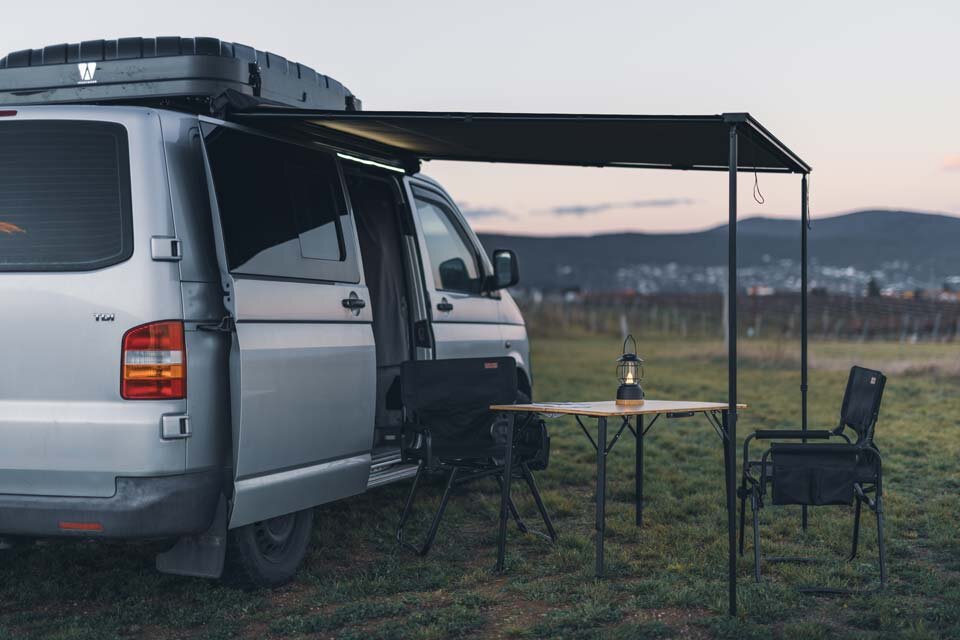

Dimmable LED lighting beneath the awning
The included warm-white LED light strip can be dimmed and provides functional light beneath the canopy.
Compatible side walls and tent rooms
The 7 mm keder allows compatible VICKYWOOD side walls and tent rooms for the respective awning model to be added. Depending on the setup, the sheltered area can be extended with privacy, wind protection or additional space.
What is included
- VICKYWOOD Rear/Side Awning in the selected version
- Mounting materials
- Guy lines
- Pegs
