Generous shelter at the vehicle rear

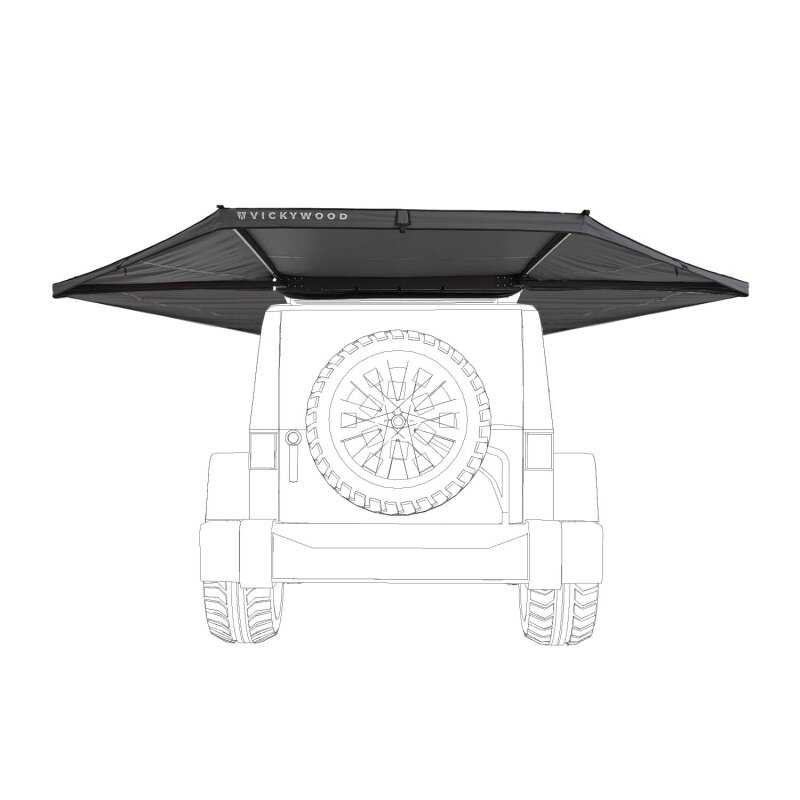

The 180° Rear Awning LEAF 150 cm in grey extends the area behind your vehicle with a spacious, sheltered area. Its 180° opening angle provides shade and protects the vehicle rear from rain.
Four swing-out awning arms
The four awning arms swing out in sequence and unfold the fabric around the rear of the vehicle. The outer arms measure 103 cm and the inner arms 134 cm, creating the characteristic 180° coverage of the LEAF.
Use self-supporting and brace when required
In suitable weather conditions, the rear awning can be used without support legs. In wind, rain or with side walls attached, it can be stabilised using the two included telescopic poles, guy ropes and pegs.
150 cm version for the vehicle rear
This version is designed specifically for rear installation and is suitable for vehicle heights up to 220 cm. Alternatively, the awning can also be fitted to the side of the vehicle. Allow for the 158 cm housing length when planning the mounting position.
Robust materials for travelling
The grey awning fabric is made from 600D ripstop polyester weighing 280 g/m² and has a 3,000 mm water column. When closed, a robust 1000D PVC cover weighing 600 g/m² protects the awning on the vehicle.
White and red light for the evening
The integrated LED lighting provides white and red light. Power is supplied by a USB power bank, which can be stored in a pocket on the inside of the housing.
Weight and matching extension
The 180° Rear Awning LEAF 150 cm weighs approx. 14.3 kg. Matching side walls are available separately and extend the sheltered area behind the vehicle. Additional support is required when using the side walls.
Installation and what is included
The included universal mounting hardware is intended for installation on suitable crossbars or roof platforms. Before installation, check the available space and the permitted load capacity of the carrier system.
- 180° Rear Awning LEAF 150 cm in grey
- Two telescopic poles
- Guy ropes
- Pegs
- Universal mounting hardware
