Dometic CFX5 75DZ – Two Temperature Zones, Maximum Flexibility
The Dometic CFX5 75DZ sets a new standard for mobile cooling: With its generous 75-liter capacity and innovative dual-zone technology, you can independently control two separate compartments – one as a refrigerator and the other as a freezer, or both as needed.
Ideal for vanlife, overlanding, boating, or expeditions where you need to safely transport fresh goods and frozen supplies at the same time.
How the Dual-Zone Technology Works

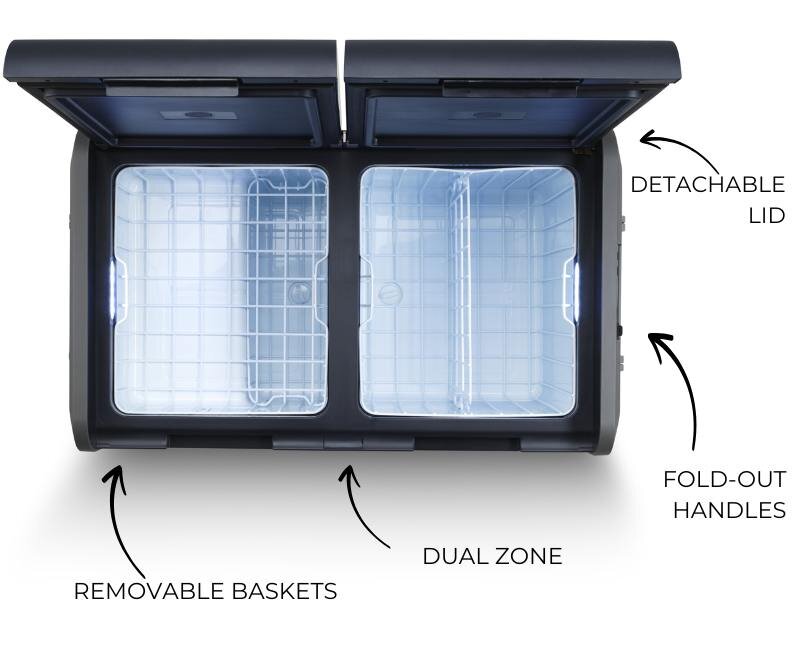

The CFX5 75DZ is internally divided into two chambers:
-
Large compartment: Cooling or freezing area (temperature adjustable from +10°C to -22°C)
-
Smaller compartment: Also individually adjustable (+10°C to -22°C)
Both compartments can be independently controlled via the display or the app.
You can freely choose whether to:
- cool both compartments
- cool one and freeze the other
- activate only one zone (to save Energy)
Technical Specifications at a Glance
| Merkmal |
Details |
| Volumen: |
75 Liter (45l große Kammer + 30 l kleine Kammer) |
| Temperaturbereich: |
+10 °C bis -22 °C (je Zone individuell steuerbar) |
| Energieverbrauch: |
2,45 Ah/h (@4°C, -15°C, Bluetooth an) |

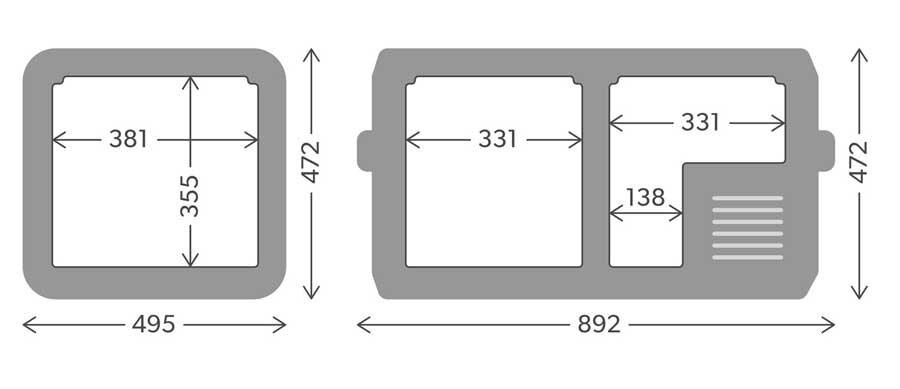

| Abmessungen (BxTxH): |
892 x 495 x 472 mm |
| Gewicht: |
27,7 kg |
| Energieversorgung: |
12V, 24V, 100–240 V AC |
| Zusatzfunktionen: |
Dual Zone, App-Steuerung, USB-Ladeport |
Technical Specifications at a Glance
| Merkmal |
Details |
| Volumen: |
75 Liter (45l große Kammer + 30 l kleine Kammer) |
| Temperaturbereich: |
+10 °C bis -22 °C (je Zone individuell steuerbar) |
| Energieverbrauch: |
2,45 Ah/h (@4°C, -15°C, Bluetooth an) |
| Abmessungen (BxTxH): |
892 x 495 x 472 mm |
| Gewicht: |
27,7 kg |
| Energieversorgung: |
12V, 24V, 100–240 V AC |
| Zusatzfunktionen: |
Dual Zone, App-Steuerung, USB-Ladeport |
Powerful and Efficient
With the VMSO3.5 compressor, the CFX5 75DZ reliably reaches the desired temperatures, even in extreme ambient conditions. Thanks to smart VIP vacuum insulation, energy consumption remains low despite the two zones (only 2.45 Ah/h when combining +4°C and -15°C). Power supply is flexible via 12V/24V DC or 100–240V AC – perfect for mobile or stationary use.
Convenient Control and Modern Technology

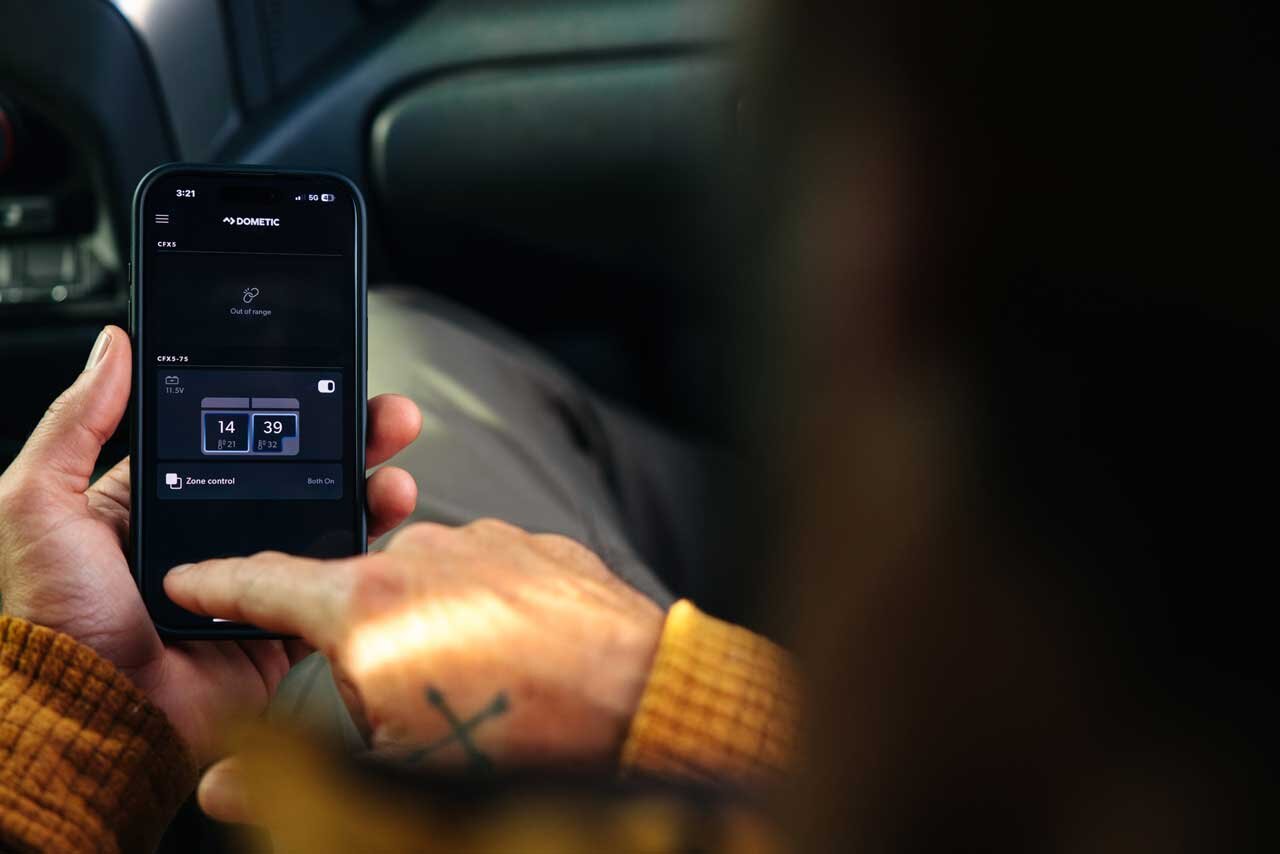

Using the Dometic Mobile Cooling App, you can independently control the temperatures of both zones via Bluetooth or WiFi. Alternatively, control is possible via the weatherproof, high-resolution color display directly on the cooler. Particularly practical: the integrated USB charging port (18W QC 3.0) for your mobile devices.
Comparison with Other Dometic CFX5 Models
The Dometic CFX5 75DZ is ideal for travelers who want both cooling and freezing options without compromising mobility.
| Modell |
Volumen |
Beschreibung |
| CFX5 25 |
25 liters |
Ultra-compact cooler |
| CFX5 35 |
36 liters |
slighty larger, perfect for weekend getaways |
| CFX5 45 |
46 liters |
offers more space for longer journeys |
| CFX5 55 |
55 liters |
optimal for groups or families |
|
CFX5 55IM
|
55 liters |
With integrated ice maker |
| CFX5 95DZ |
94 liters |
maximum capacity and flexibility for long expeditions |
The Dometic CFX5 75DZ offers the perfect balance between large storage capacity and maximum flexibility thanks to two independently regulated cooling zones. Ideal for anyone traveling off-grid for longer periods while needing to safely transport both fresh and frozen goods.
Product safety information
Manufacturer information:
DOMETIC GERMANY GMBH
Hollefeldstr. 63
48282 Emsdetten, Deutschland
info@dometic-waeco.de
| Item information |
Value |
| Shipping weight: |
31,10 kg
|
| Item weight: |
27,70 kg
|
| Dimensions
( Length × Width × Height ):
|
53,50 × 93,50 × 52,00 cm |
